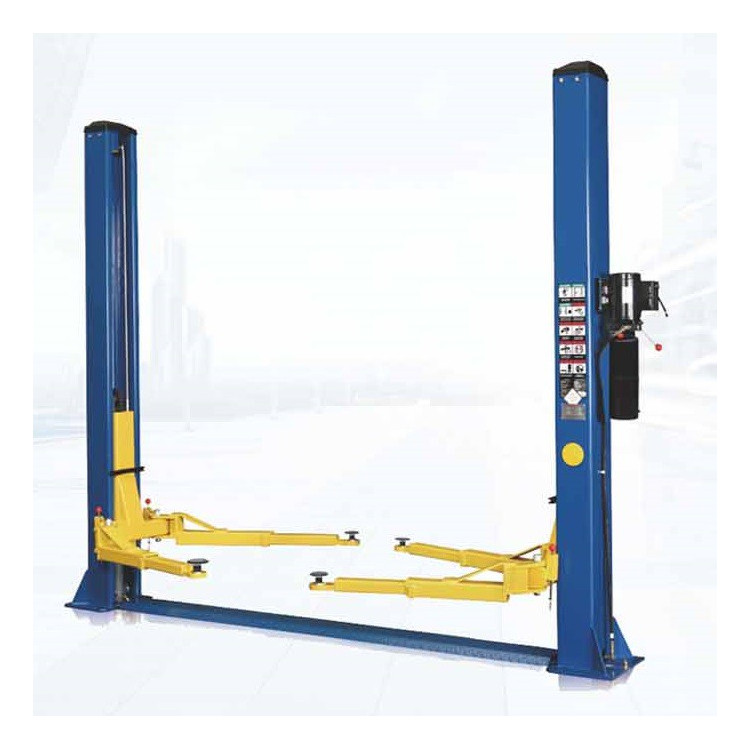

2 COLUMN LIFT BT 240
  • 2 COLUMN LIFT BT 240

2 COLUMN LIFT BT 240

€2,259.00
Tax excluded
Quantity
En stock

Lifting capacity: 4 T

Maximum lifting height: 1 900 mm

Minimum lifting height: 140 mm

Total height of the column: 2 826 mm

Width between columns: 2,557 mm

* Motor: 380V/50HZ/3PHZ.

12 MONTHS WARRANTY ON PARTS.

Security guarantees

100% secure CB payment, PayPal accepted

Delivery policy

Delivery TNT

Politique retours

Do not hesitate to contact us by mail or by phone
BT240
2 Items

Data sheet

Customs code
8425410000

- The cylinder stroke is 915 mm.

- Lifting process with hydraulic cylinder.

- Iron motor with steel tank.The power unit adopts CBK gear pump as standard, it is with axial compensation, high working pressure and internal structure of the use of advanced processing technology, high efficiency, pre-assembled so that the cleanliness of the pump reaches a higher level.

- Hoses are designed for 600 bar pressure, the inner layer with nylon, the second layer of high-strength steel wire, the outer coating layer is a rubber fabric, specialized for oil.

- Octagonal plate.

- Adjustment of the hole according to the insurance regulation, easy to repair and maintenance.

- 6 mm tube thickness for the arms.

- 16 mm thickness for the base plates.

The delivery is offered from 150€ HT of purchase, below this sum, a participation of 12.50€ HT will be charged to you for France ,9,50€ HT for Germany, Belgium, Denmark, Luxembourg and for the Netherlands, 20€HT for Spain, Italy and Portugal.

The delivery is offered from 250€HT of purchase, for Austria, Hungary, Ireland, Poland, the Czech Republic, Slovakia, Slovenia and Sweden below this amount, a participation of 20€HT will be charged.

The delivery is offered from 500€HT of purchase, for Switzerland, Litchtenstein below this amount, a participation of 50€ HT will be charged to you, because of a supplement except CE and supply of a pro forma for the customs.
