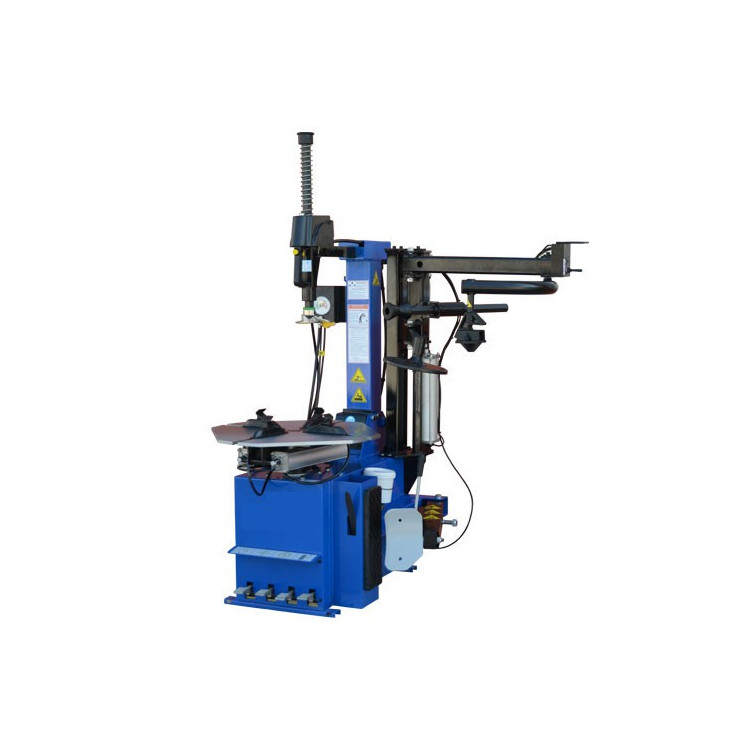

TIRE CHANGER CM 646
8 - 13 RPM 1100 mm 43" (43") 360 mm (14") 13"-26" 10"-24" 230V 50-60Hz 1ph 2800 Kg. 380 mm 0,75 hp 234 Kg....
Maximum wheel diameter: 1150 mm
Maximum permissible rim width: 14 inches
Clamping jaws (inside): 12 to 25 inches
Clamping jaws (outside): 10 to 22 inches
Clamping force: 2,500 kg
Operating pressure: 8 ~ 10bar
Noise level
* Motor: 220V/50HZ/1PHZ
FREE DELIVERY IN BELGIUM, METROPOLITAN FRANCE, LUXEMBOURG
Security guarantees
100% secure CB payment, PayPal accepted
Delivery policy
Delivery TNT
♦ Tire changer with pneumatically tiltable tower.
♦ Simultaneous pneumatic locking of horizontal and vertical arms with automatic positioning of the head in the optimal working position.
♦ Head with interchangeable plastic parts for rim protection.
♦ Pneumatic swing arm support column providing high torsional rigidity in all operating positions.
♦ Clockwise and counterclockwise rotation of the turntable through the electric motor.
♦ Front pull-out pedal.
♦ Protective kit for take-off shoe, disassembly head, clamping jaw and lever comes standard.
♦ Tubeless quick tire inflation system with pedal control and bead positioning in the turntable slides.
♦ Pressure reading unit with pressure release button.
♦ Complete with lubrication filter and pressure regulator and limiter.
♦ ROF assist arm: "
Rotating arm with bead pressing block for drop-center rims, for easy mounting and demounting of tires, especially low-profile tires.
"Rim crimping cone for easy wheel clamping.
"Tire lift disc for easy removal of difficult tire and wheel combinations.
" Mid-position roller helps loosen the second bead
